This controller is built from various building blockes.
each card level has it's functionality.
The controller in the picture for example, has:
- BLDC power control
- main control card with USB connectivity
- special communication card with RS485 and CAN
and several types of logic inputs
WIFI connection card (on the side)
each controller is built from several types of building
blockes accordign to the customer's spec.
POWER-IN connector - Unregulated 8-36V inlet
MOTOR POWER connector -
for high current motor -
3 phase output (12 Amp.)
MOTOR OUT connector -
for motor signals
& low current 3phase (5 Amp)
1. Analog Encoder input
2. A/B incremental pulse encoder.
3. SSL bus input.

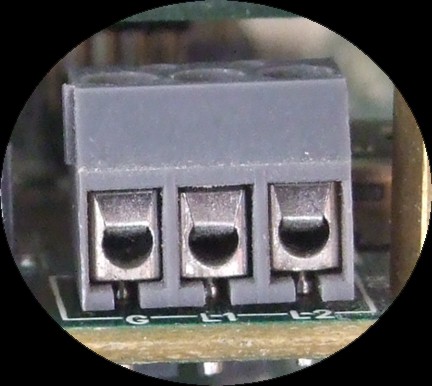

Limit Switches input
(optical isolated inputs)
Tere are 3 connectivity options:

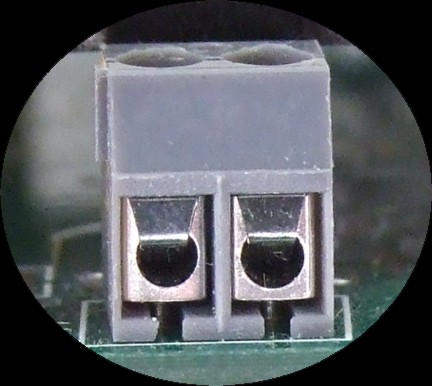

2 wire terminal -
for simple analog control
mini USB connector -
for USB control
2 wire terminal -
485 / CAN communication
need RF connectivity? ZigBee? WiFi?
nees special connectivity adapter?
Well, we have it all. Just email us:
